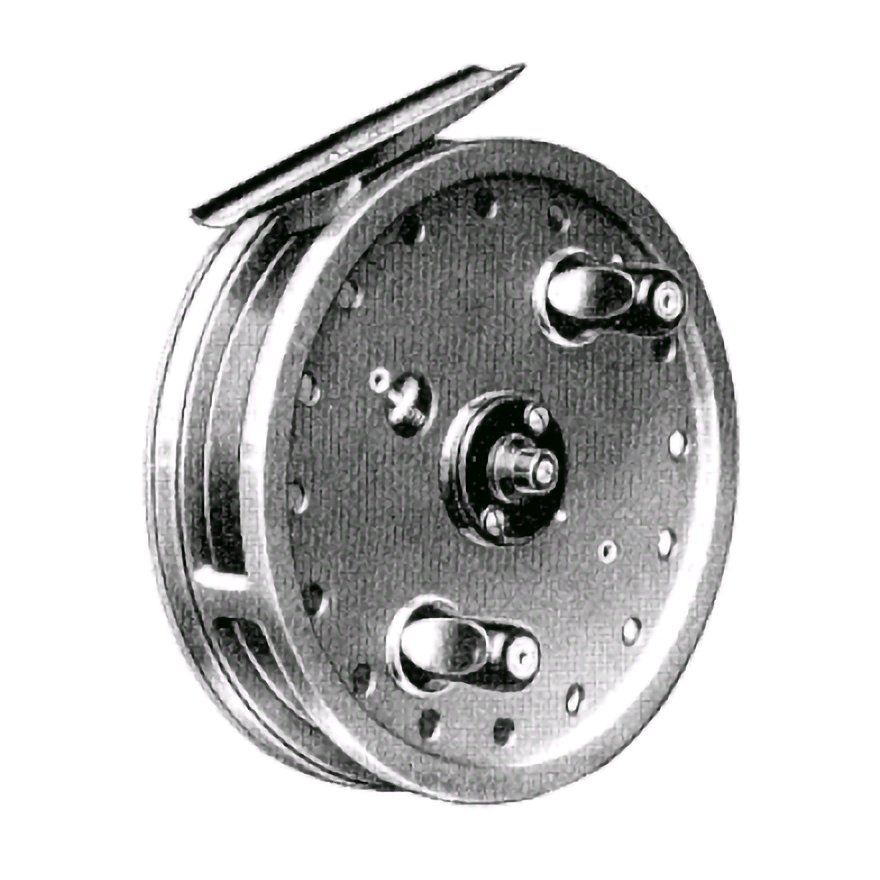

RAPIDEX

The RAPIDEX for Coarse Fishing. Designed to meet every requirement and very much favoured by experts. Check-work, bearings, safe grip handle, easy to dismantle for cleaning, and other details, have received special attention.

Features include:

• ​Exceptionally free running line drum, with bearings of the pivotal centre-pin type.
• Fitted with a regulator by which the line drum can be controlled.
• Built in a contracted form with large diameter line drum, providing rapid recovery of line.
• The complete diameter of the front flange of the line drum is accessible for manual control and the frame is so designed to give a perfect guard to the line at any position the line may leave the reel.
• The clearance between the back flange of the line drum and the frame is extremely fine, thus avoiding the finest of Nylon lines fouling the mechanism.

1959 Retail Price*: £3 15s

*exclusive of Purchase Tax which is equal to one sixth of the price.

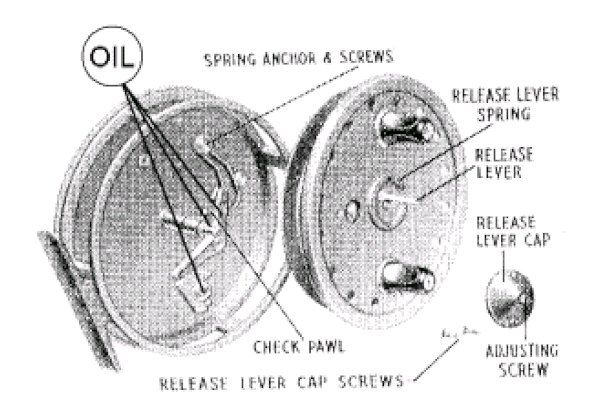

LUBRICATING, CLEANING & CARE OF YOUR RAPIDEX

• To dismantle, pull aside the Release Lever at the front and lift Line Drum from the frame.
• Oil the Spindle, Check Wheel and movable parts of the check mechanism, using good quality thin oil.
• To replace Line Drum, pull aside Release Lever, to allow it to go easily into position. Do not use force.
• A little oil at the top and base of the handles adds to the sweet working of the reel.
• The centre screw of the Release Cap is for the adjustment of any end-play that may develop through normal wear.
• After use remove all traces of moisture and keep your reel in a dry place.
