THE SELDEX

For Float Fishing, Salmon and Pike Spinning and Light Fly Fishing.

Features include:

• The line drum is exceptionally free-running: the complete diameter of the front flange of the line drum is accessible for manual control.
• Bearing made from best steel, centreless ground; of the pivotal centre-pin type with provision for end-adjustment.
• Lever-operated specially-treated steel check-work fitted in a convenient position for instant application.
• Front face of line drum perforated for line ventilation.
• Well designed spring latch for quick removal of the line drum for cleaning and oiling; incorporates adjustment for end-play.

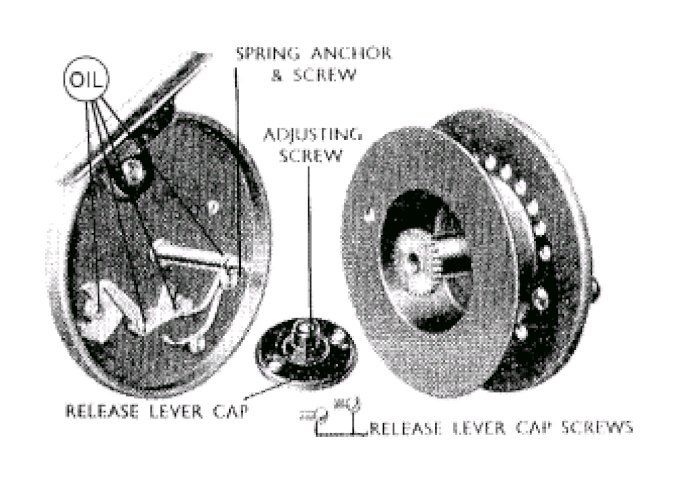

LUBRICATING, CLEANING & CARE OF YOUR SELDEX

• To dismantle, pull aside the Release Lever at the front and lift Line Drum from the frame.

• Oil the Spindle, Check Wheel and movable parts of the check mechanism, using a good quality thin oil.

• To replace Line Drum, pull aside Release Lever, to allow it to go easily into position. Do not use force.

• A little oil at the top and base of the handles adds to the sweet working of the reel.

• The centre screw of the Release Cap is for the adjustment of any end-play that may develop through normal wear.

• ​After use remove all traces of moisture and keep your reel in a dry place.
